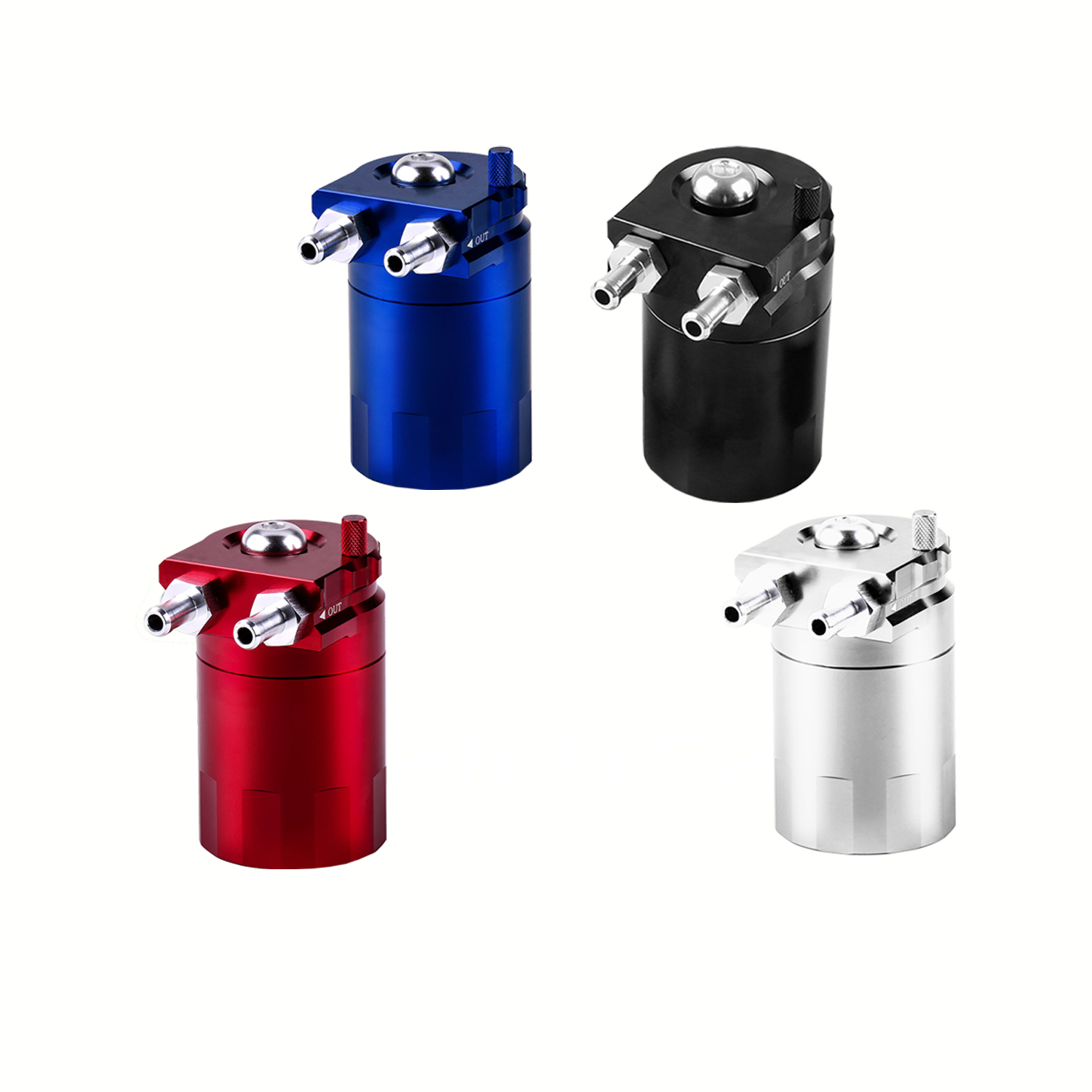

Oil Catch Canisters

Better Performance, Longer Motor Lifespan!

An oil catch tank/ can is used in turbo applications, or high-performance racing applications where excessive blow-by (leakage past the piston rings) of air and fuel vapor occurs. This creates a positive pressure in the crankcase. During engine operation, blow-by gases, as well as oil mist from the rotating components of the engine, pass through the PCV valve and are routed back into the intake for the engine to burn off. However, some of the oil mist and other by-products settle along the engine intake and over time form a gunk. The oil catch tank collects such oil mist and condenses the fuel vapors while allowing cleaner gases to be passed back into the intake.

Specifics and Features

  • Made with High Quality Billet Aluminum for Enhanced Strength and Durability
  • 5″ Height x 3.25″ Diameter
  • Anodized Body
  • 3/8″ & 9/16″ Hose Adapters
  • Removable Baffle that Can Store Additional Filter Media
  • Ensure Better Mileage, Better Performance and Preserve Engine Life
  • Catch Oil and Sludge to Save the Life of the Engine
  • Air Filter to use as Vented System
  • Built In Dipstick To Check Fluid Level
  • Mounting Hardware & Hose Adapters
  • Removable Bottom to Drain

Description

Better Performance, Longer Motor Lifespan!

An oil catch tank/ can is used in turbo applications, or high-performance racing applications where excessive blow-by (leakage past the piston rings) of air and fuel vapor occurs. This creates a positive pressure in the crankcase. During engine operation, blow-by gases, as well as oil mist from the rotating components of the engine, pass through the PCV valve and are routed back into the intake for the engine to burn off. However, some of the oil mist and other by-products settle along the engine intake and over time form a gunk. The oil catch tank collects such oil mist and condenses the fuel vapors while allowing cleaner gases to be passed back into the intake.

Features

  • Made with High Quality Billet Aluminum for Enhanced Strength and Durability
  • 5″ Height x 3.25″ Diameter
  • Anodized Body
  • 3/8″ & 9/16″ Hose Adapters
  • Removable Baffle that Can Store Additional Filter Media
  • Ensure Better Mileage, Better Performance and Preserve Engine Life
  • Catch Oil and Sludge to Save the Life of the Engine
  • Air Filter to use as Vented System
  • Built In Dipstick To Check Fluid Level
  • Mounting Hardware & Hose Adapters
  • Removable Bottom to Drain

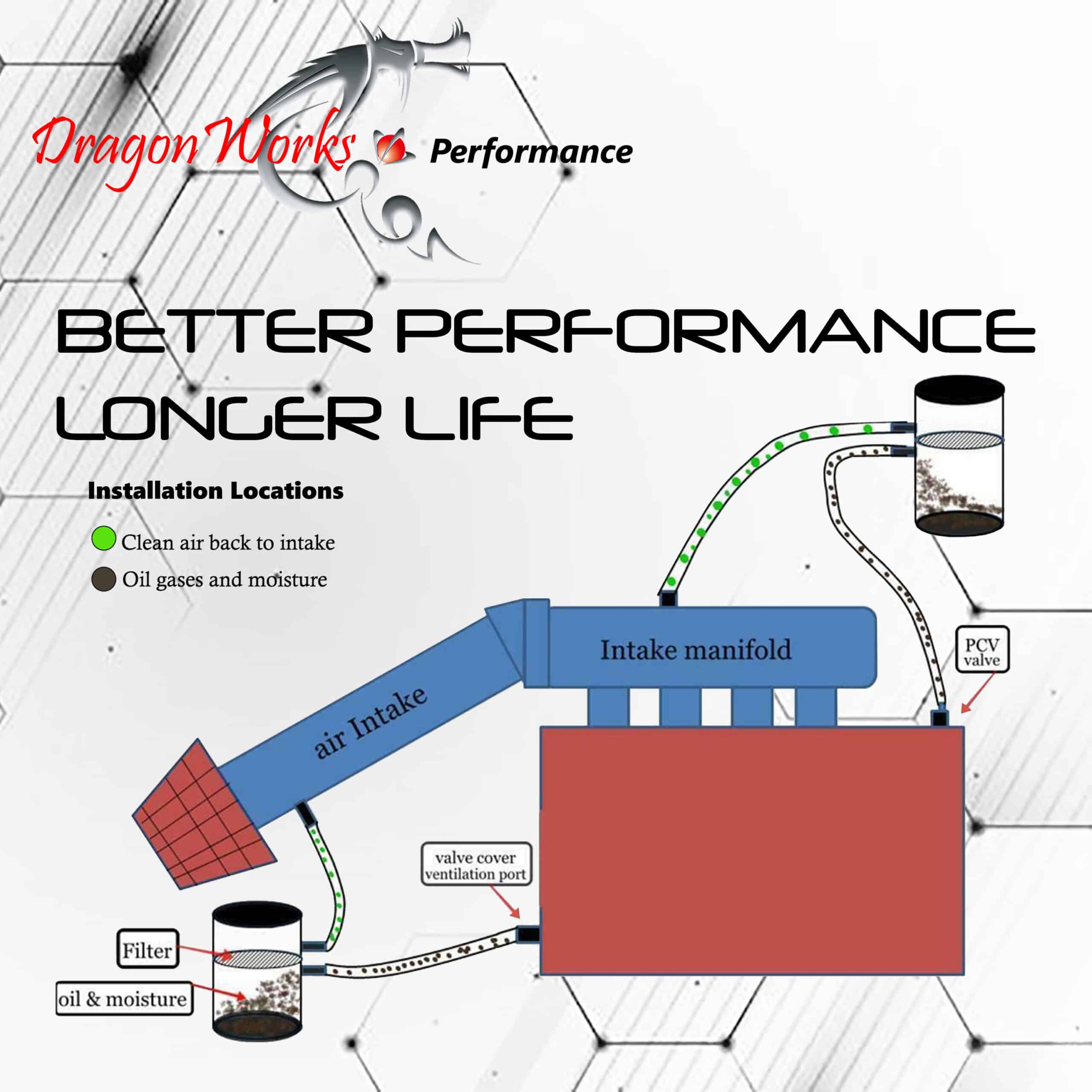

How It Works

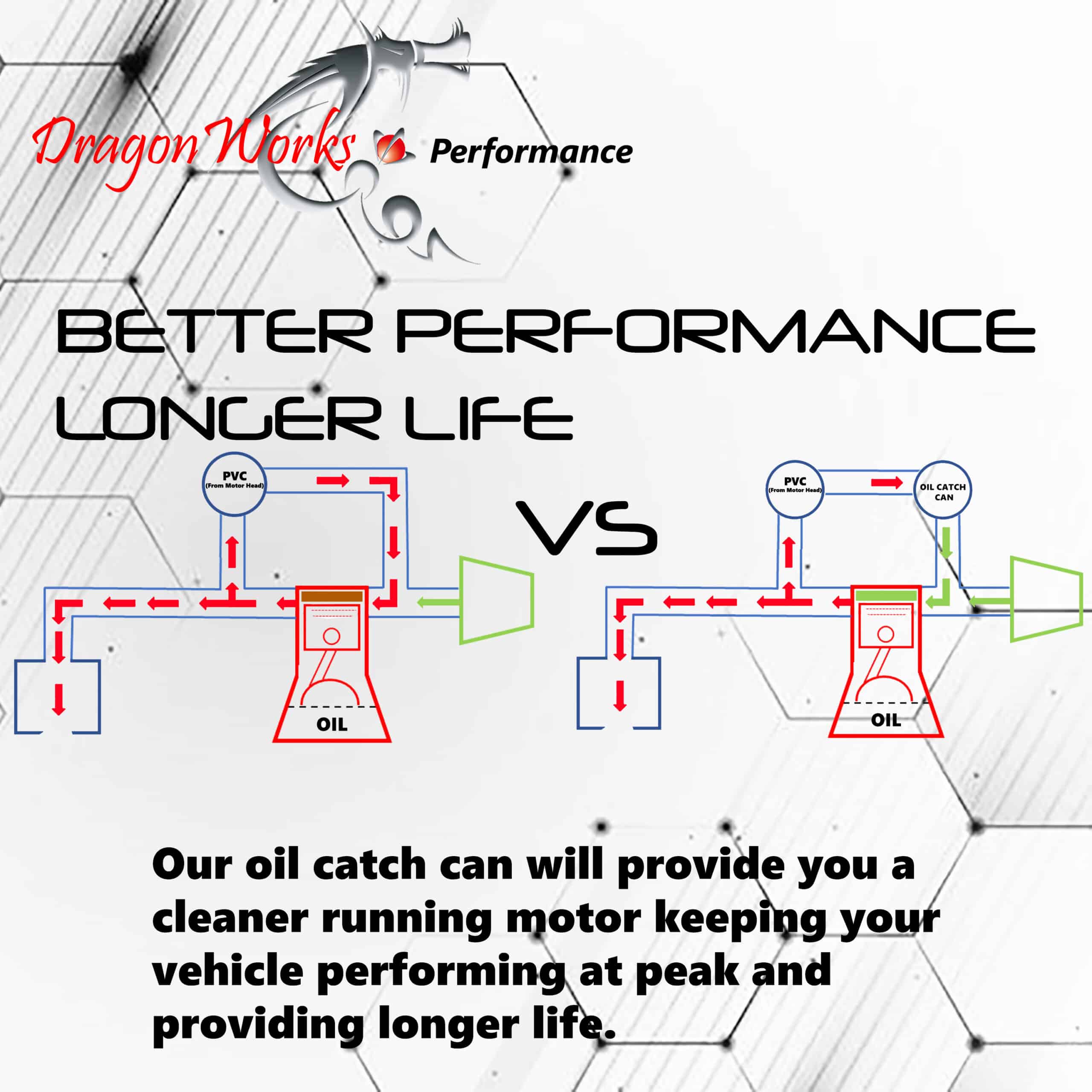

An oil catch tank/ can is used in turbo applications, or high-performance racing applications where excessive blow-by (leakage past the piston rings) of air and fuel vapor occurs. This creates a positive pressure in the crankcase. During engine operation, blow-by gases, as well as oil mist from the rotating components of the engine, pass through the PCV valve and are routed back into the intake for the engine to burn off. However, some of the oil mist and other by-products settle along the engine intake and over time form a gunk. The oil catch tank collects such oil mist and condenses the fuel vapors while allowing cleaner gases to be passed back into the intake.

FAQs

Q: Can adding this oil catch canister hurt my car in any way?
A: No! The DragonWorks Oil Catch Canister is completely safe for your vehicle and will only help it never hurt it.

Q: Can I Install this myself or would I need a mechanic to do it?
A: It is very easy to install and can be done in your own garage with standart mechanics tools.

Q: Can it send a check engine light?
A: No, oil catch canisters do not send cerl indicators.

Q: Will this work for my specific vehicle?
A: Yes! If your vehicle has a motor that is powered by any type of fuel then it produces these carbon oil vapors that this filter will catch and protect your vehicle from!

Please check our “FAQs Page”.
